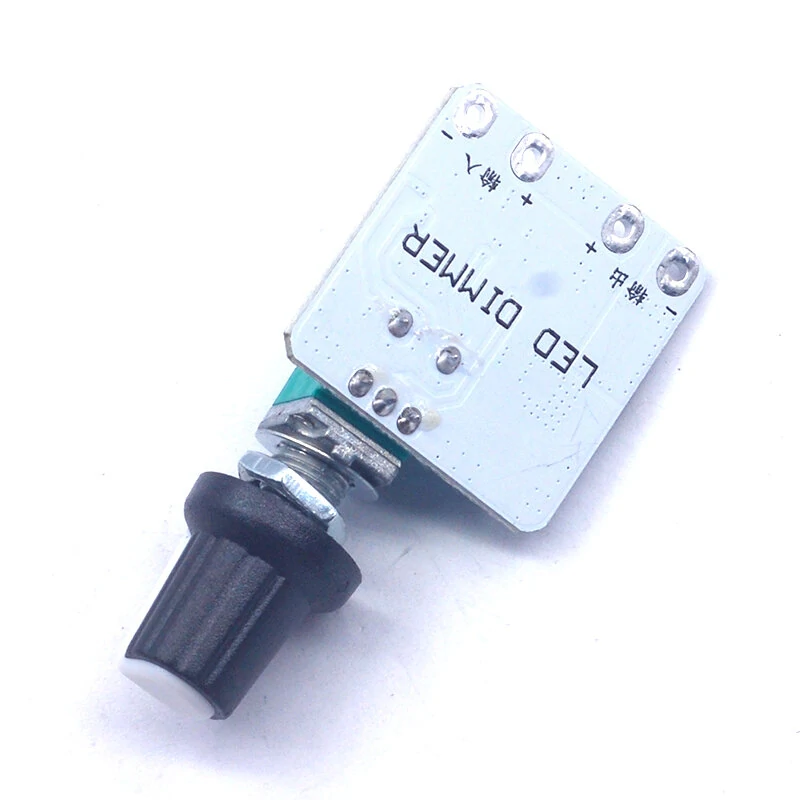

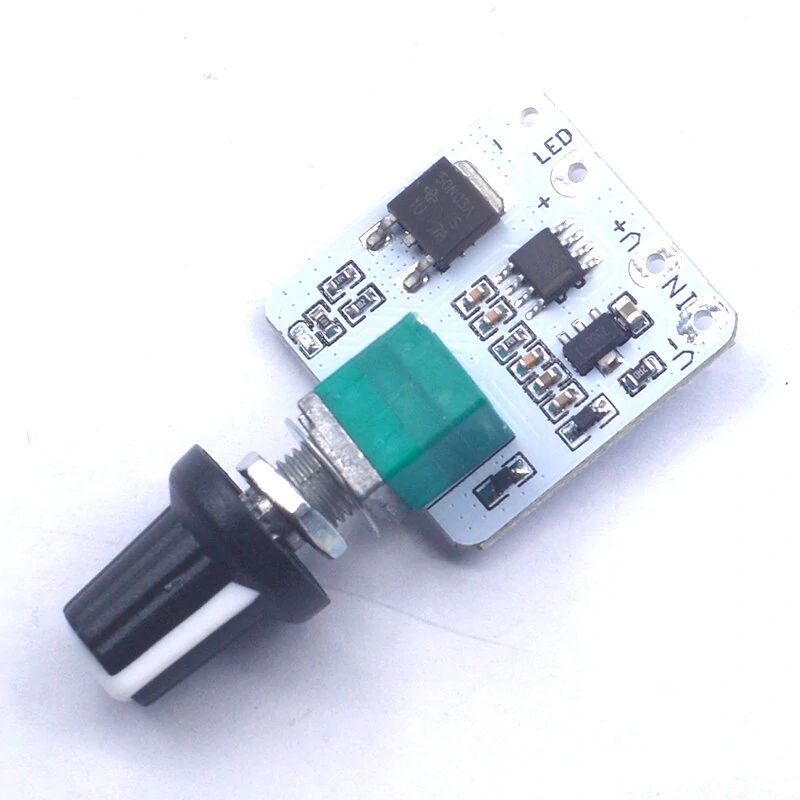

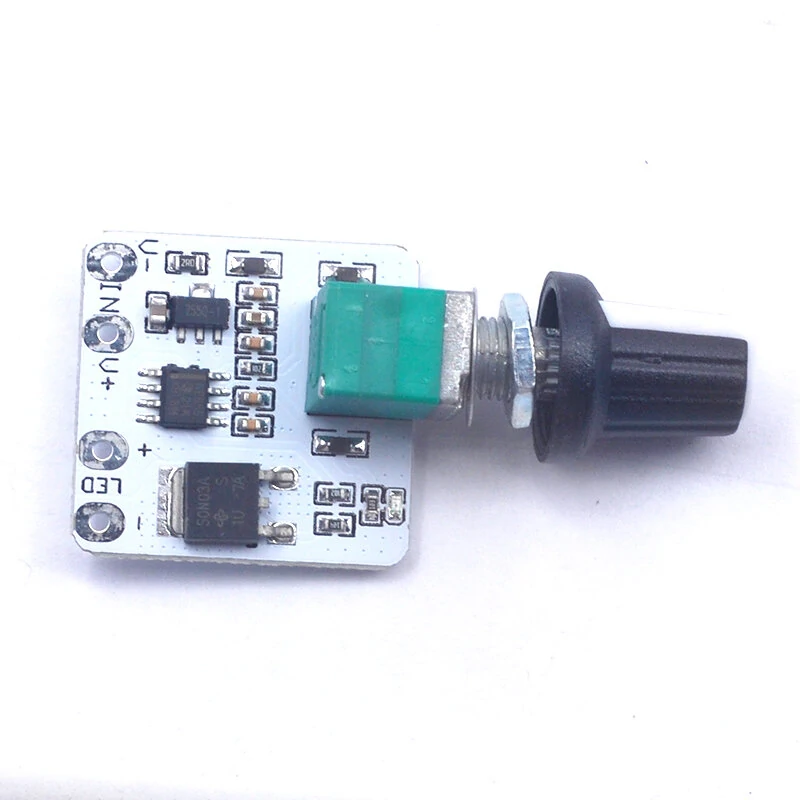

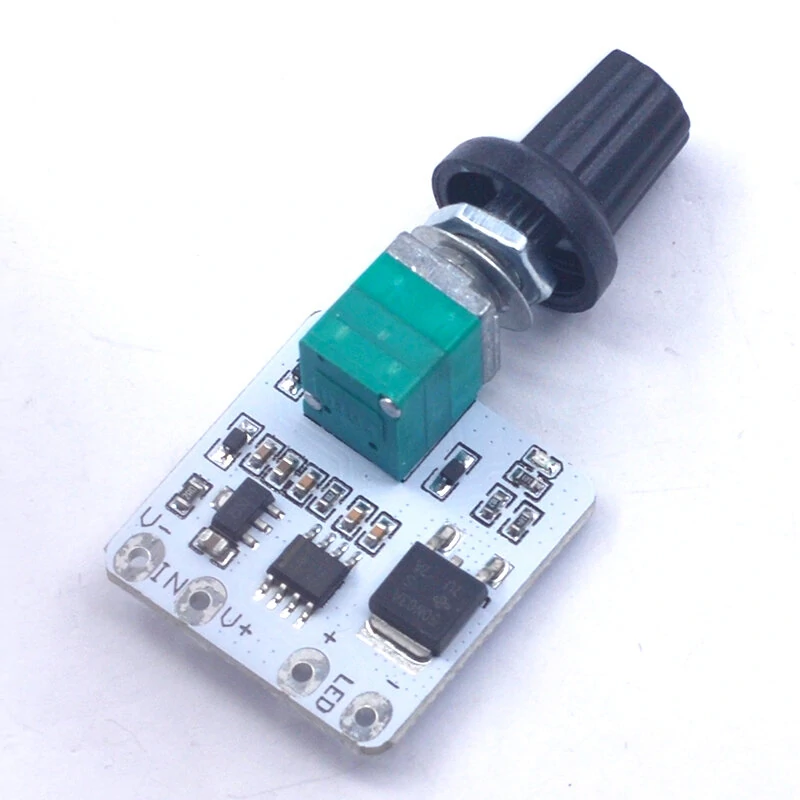

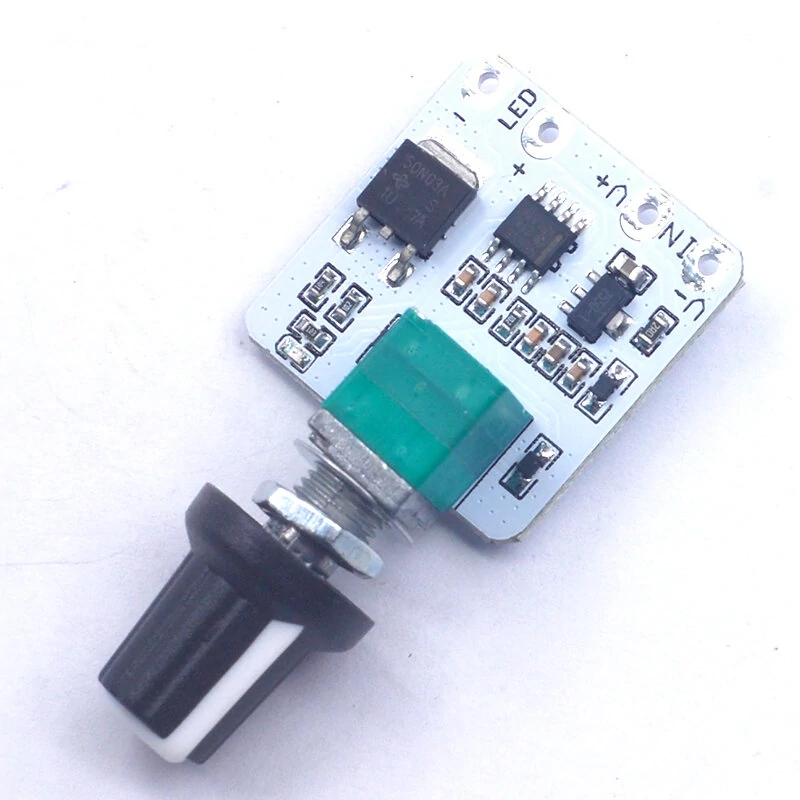

12V LED Constant Voltage Dimmer Module Light Strip With Switch Board Brightness Adjustment Advertising Word Light Box No Flicker Module Board
The 12V LED Constant Voltage Dimmer Module Light Strip With Switch Board Brightness Adjustment Advertising Word Light Box No Flicker Module Board is a value-for-money product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The 12V LED Constant Voltage Dimmer Module Light Strip With Switch Board Brightness Adjustment Advertising Word Light Box No Flicker Module Board is a value-for-money designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Elecvora?
Elecvora sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Parameter:
Input voltage: DC6-24V
Output Voltage: Equivalent to Input Voltage
Load current: within 5A maximum
Load power: maximum 120W
Dimming range: 0-100% stepless adjustment, five strobes
Working mode: constant voltage, with switch function
Product Features:
1. Using high-quality materials, the quality is guaranteed
2. Durable and long life
3. Small and exquisite appearance
4. Dimming five strobes, with standby indicator
5. Wide range of applications
Recommendations:
1. The module has input reverse connection protection, no output short circuit protection, pay attention to check the wiring is correct and then connect
Electric work.
2. The voltage difference between the input and output of the module should not be higher than 3V, so that the dimming effect and efficiency are the best.
Such as: input 9V, with 2 strings of LEDs (light source must be connected in series with resistors to limit current), input 12V, with 3 strings of LEDs (light sources must be connected with resistors to limit current), input 24V, with 6-7 strings of LEDs (light sources must be connected with resistors for current limit)
Package list:
Dimming module*1
