2Pcs VU Meter + 1pc Driver Board with Warm Backlight Analog VU Panel Meter Recording
5.03 ratingsThe 2Pcs VU Meter + 1pc Driver Board with Warm Backlight Analog VU Panel Meter Recording is a mid-range product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
30% Off — you save ₹991 on this product!
Type: DIY Kit
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The 2Pcs VU Meter + 1pc Driver Board with Warm Backlight Analog VU Panel Meter Recording is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Elecvora?
Elecvora sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Features:
VU Meter:
Stable and reliable performance.
Easy to use.

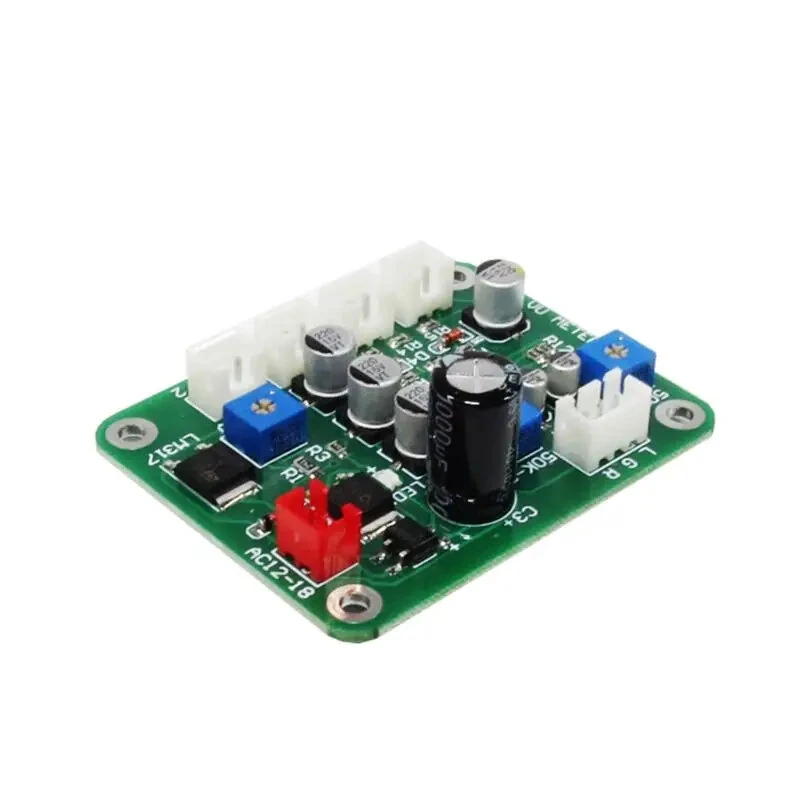

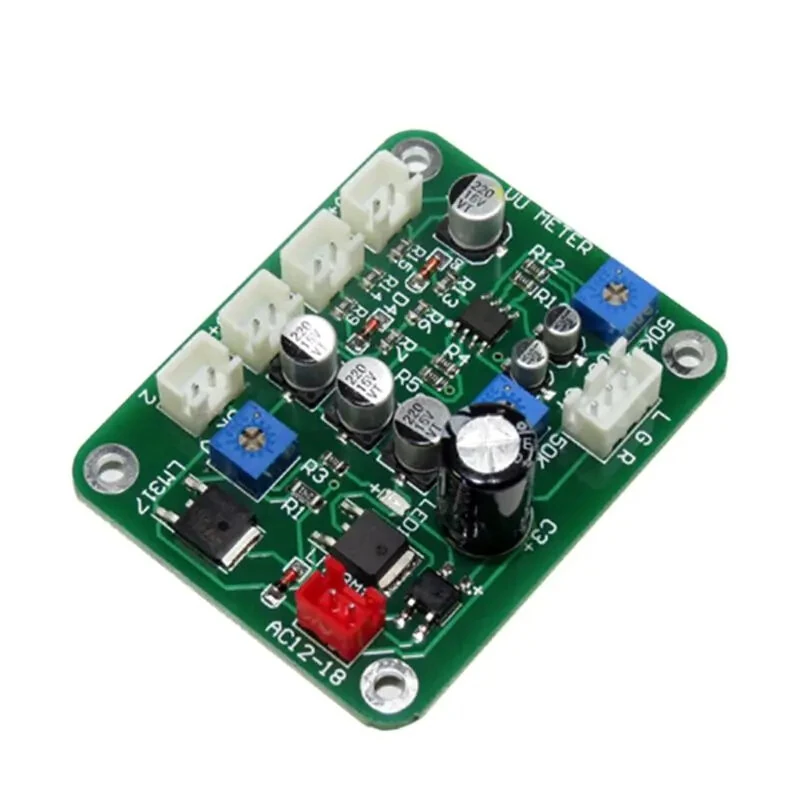

Driver Board:
The fourth generation driver board, further sharpen the of the size.
The fourth generation of driver board board instead of perfect for Toshiba 7318IC, improved 7318 2 disadvantages: small swing plate; adjust small sensitivity.
Small space, easy to install.
Well done and long-lasting.

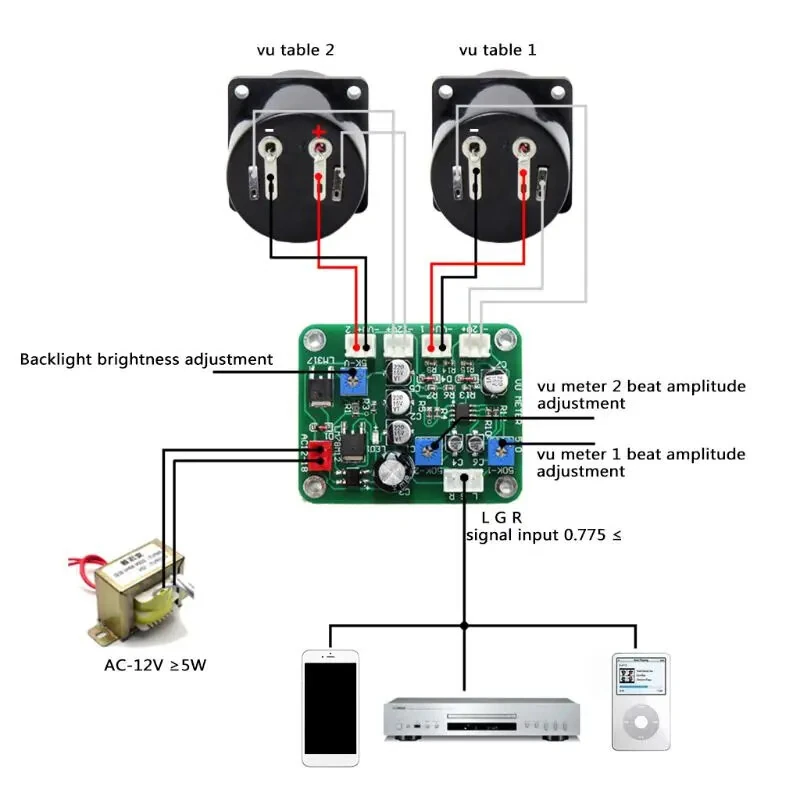

Instructions:
1. In for DC 12-15V Power Supply for Transmission Plate. (recommended independent power or a separate winding power supply plate when not in use 45MA current backlight).
2. L, GND, This is the driver board The low-level input terminals for connections are players, computer sound cards, the and other source device, L, GND wiring , respectively: To the left, the right channel can be.
3. and are two adjustable resistors board driver can control the size of the swing hands.
4. The backlight DC12V power meter is used after the driver board backlight used for voltage regulator.
5. Note that the positive and negative for head interfaces.
To extend bulb backlight life, you can use the following method:
1. Backlight brightness according to the conditions to meet the requirements to reduce the operating can be considerably longer lasting.
2. Power 10~12V, 10 Euro Series at 50 Euro Limiting Resistor, reducing the impact on the boot filament.
Material: Plastic+Metal
Color: Black
Backlight for DC 6-12V
Measuring 0-500UA±10%
Resistance: 650Ω±10%
Accuracy: ± 5%
Location: Full-scale 500UA

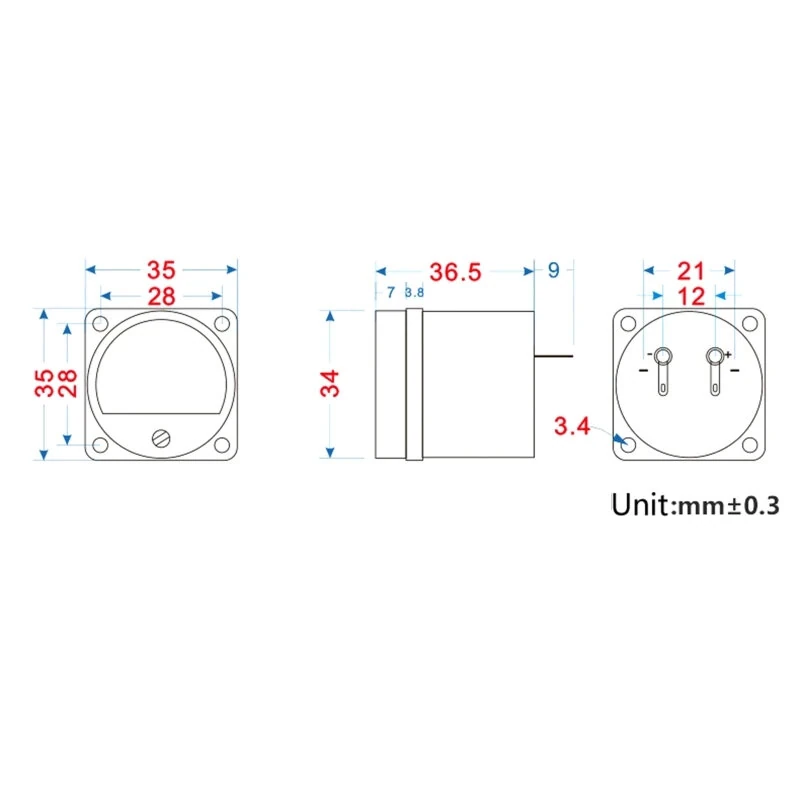

VU Meter Size: Approx. 35x35x37mm/1.38x1.38x1.46"
Quantity: 1 Set
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Included:
2 x VU Meter Panel
1 x Driver Board
5 x Cable
