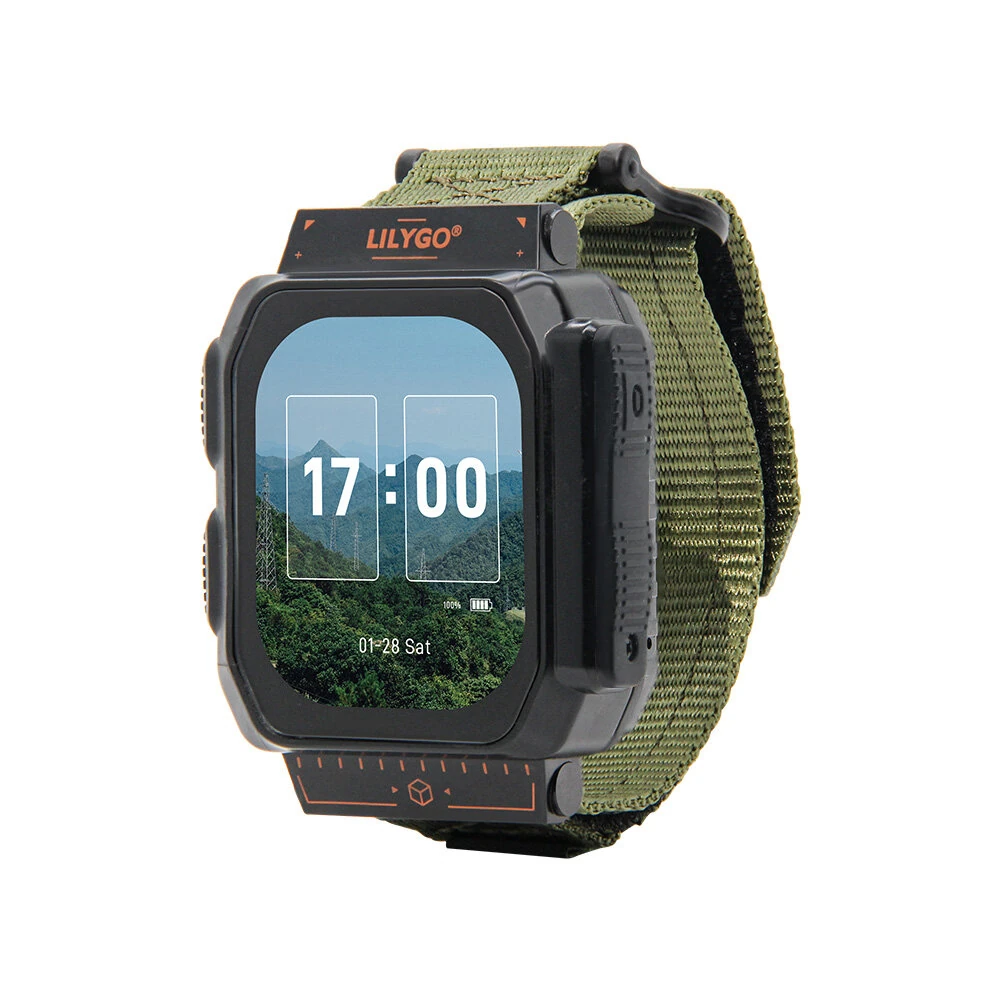

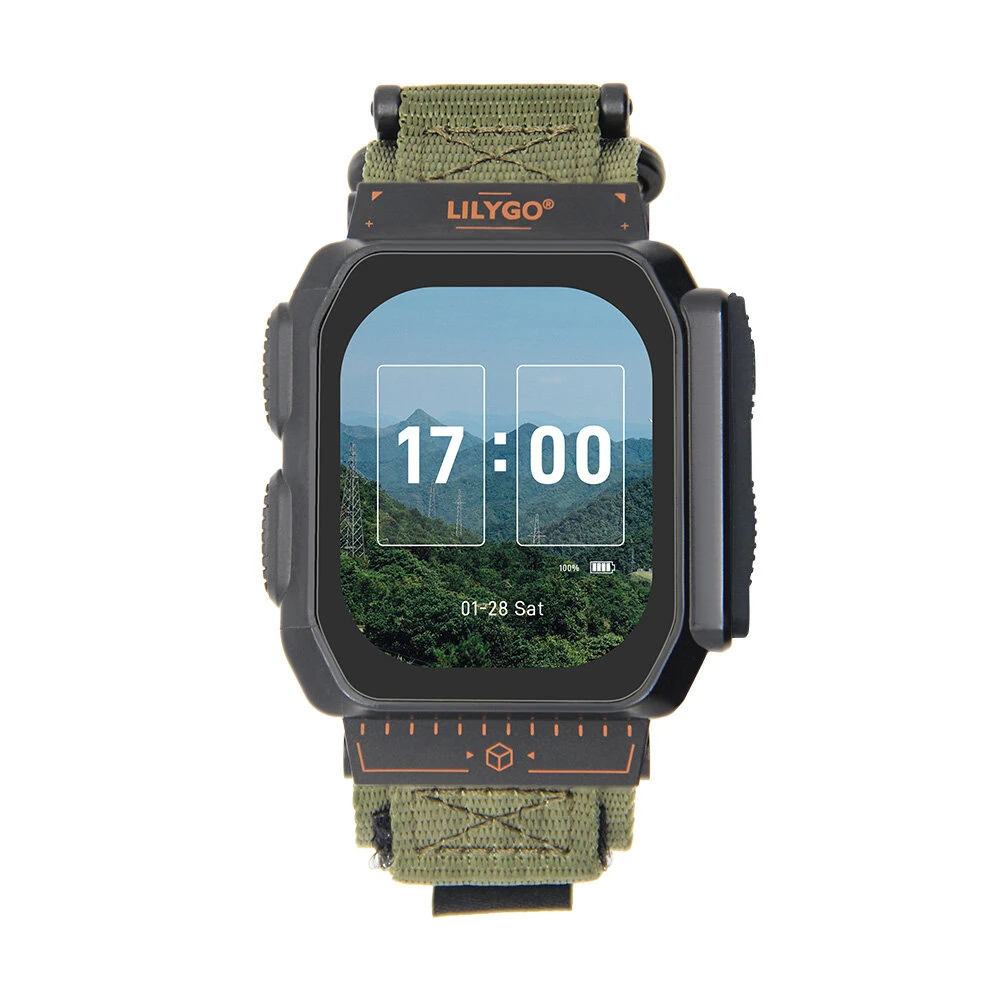

LILYGO T-Watch Ultra Watch ESP32-S3 Development Board 2.06 Inch AMOLED 410x502 Capacitive Touch Wi-Fi BLE 5.0 LoRa SX1262 16MB Flash 8MB PSRAM NFC GNSS Programmable Watch

Name: LILYGO T-Watch Ultra Watch ESP32-S3 Development Board 2.06 Inch AMOLED 410x502 Capacitive Touch Wi-Fi BLE 5.0 LoRa SX1262 16MB Flash 8MB PSRAM NFC GNSS Programmable Watch
Brand: LILYGO
SKU: 2050202
Price: 10395 INR
Availability: InStock
Rating: 5.0 (1 reviews)

5.01 rating

544+ bought in past month

AI Summary

Smart Module for premium buyers

The LILYGO T-Watch Ultra Watch ESP32-S3 Development Board 2.06 Inch AMOLED 410x502 Capacitive Touch Wi-Fi BLE 5.0 LoRa SX1262 16MB Flash 8MB PSRAM NFC GNSS Programmable Watch by LILYGO is a premium smart module designed for premium buyers.

₹10,395-26%

MRP:₹14,099Save ₹3,704

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

26% Off — you save ₹3,704 on this product!

frequency: 915MHZ

Price: ₹10,395

Quantity

Total: ₹10,395

Buying tip: A top-tier option — the best features and quality available in this category.

Estimated delivery: 24 Aug – 7 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Electronics projectsArduino / Raspberry Pi buildsPrototyping

SKU: bg-2050202Category: Smart Module

About This Product

The LILYGO T-Watch Ultra Watch ESP32-S3 Development Board 2.06 Inch AMOLED 410x502 Capacitive Touch Wi-Fi BLE 5.0 LoRa SX1262 16MB Flash 8MB PSRAM NFC GNSS Programmable Watch by LILYGO is a premium smart module designed for premium buyers. It delivers reliable performance at an accessible price.

Why Buy from Elecvora?

Elecvora sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

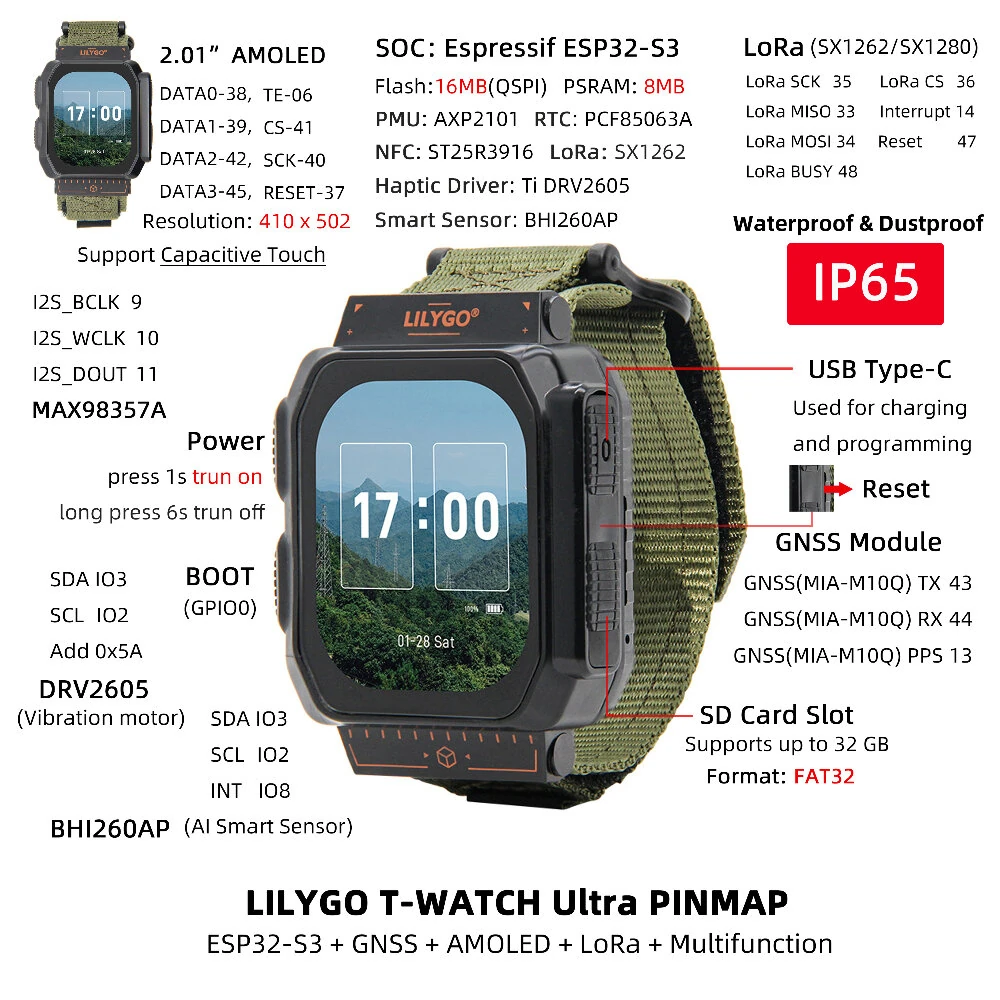

Specifications:

MCU: ESP32-S3

Flash: 16MB

PS RAM: 8MB

Platform: ArduinoIDE, ESP-IDF, VS Code, Micropython

Wireless: Wi‑Fi 802.11 b/g/n; BLE V5.0

Onboard Functions: PMU Microphone, MAX98357A, RTC, NFC, Vibration Motor, SD Card, GNSS, Self-learning AI

LoRa Transceiver: SX1262

DRV2605: Haptic Driver Motor for ERM and LRA

AXP2101: Highly Integrated Power Management Unit

Dimension: 49 x 63.5 x 22 mm

Battery: 1100mA (4.07 Wh)

Display: 2.06 inch CO5300 (QSPI) AMOLED with CST9217 capacitive touch

Resolution: 410 x 502

Display Colors: 16.7M

Features:

- ESP32-S3 with 16MB Flash and 8MB PS RAM; supports -IDE, ESP-IDF, VS Code, MicroPython.

- 2.06" CO5300 (QSPI) AMOLED with CST9217 touch, 410x502 resolution and 16.7M colors.

- Multiple wireless options: Wi‑Fi 802.11 b/g/n, BLE 5.0, and LoRa via SX1262.

- Onboard functions include PMU Microphone, MAX98357A, RTC, NFC, vibration motor, SD card, GNSS, self-learning AI.

- AXP2101 power management and DRV2605 haptics; 1100mA (4.07 Wh) battery in a 49 x 63.5 x 22 mm body.

Package Included:

1 x LILYGO T‑Watch Ultra

Product Safety Information

Setup Guide

Identify the pins

Locate VCC (power), GND (ground), and data pins (SDA/SCL for I2C, MOSI/MISO for SPI, or TX/RX for UART). Refer to the pinout diagram on the product page.

Wire to your microcontroller

Connect VCC to 3.3V or 5V (check the module spec), GND to GND, and data pins to the appropriate GPIO pins on your Arduino or Raspberry Pi.

Install libraries

In Arduino IDE, go to Sketch → Include Library → Manage Libraries and search for the sensor library. Install the recommended version.

Upload example sketch

Open File → Examples → [library name] → Basic Example. Upload to your board and open Serial Monitor to view output.

Calibrate if needed

Some sensors (temperature, humidity, distance) may need a short warm-up period or calibration. Run the calibration sketch if provided.
