LM2596 Regulated Power Supply Module DC7-25V to DC3.3V 5V Adjustable Regulator Electric Racing Robotics Laboratory

31+ bought in past month
AI Summary
product for everyday users

The LM2596 Regulated Power Supply Module DC7-25V to DC3.3V 5V Adjustable Regulator Electric Racing Robotics Laboratory is a value-for-money product designed for everyday users.

₹951-44%
MRP:₹1,691Save ₹740
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

44% Off — you save ₹740 on this product!

Color: Black

Black
Total: ₹951
Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.
Estimated delivery: 25 Aug8 Sept
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience
Share:
SKU: bg-2051307

About This Product

The LM2596 Regulated Power Supply Module DC7-25V to DC3.3V 5V Adjustable Regulator Electric Racing Robotics Laboratory is a value-for-money designed for everyday users. It delivers reliable performance at an accessible price.

Why Buy from Elecvora?

Elecvora sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.


Features:

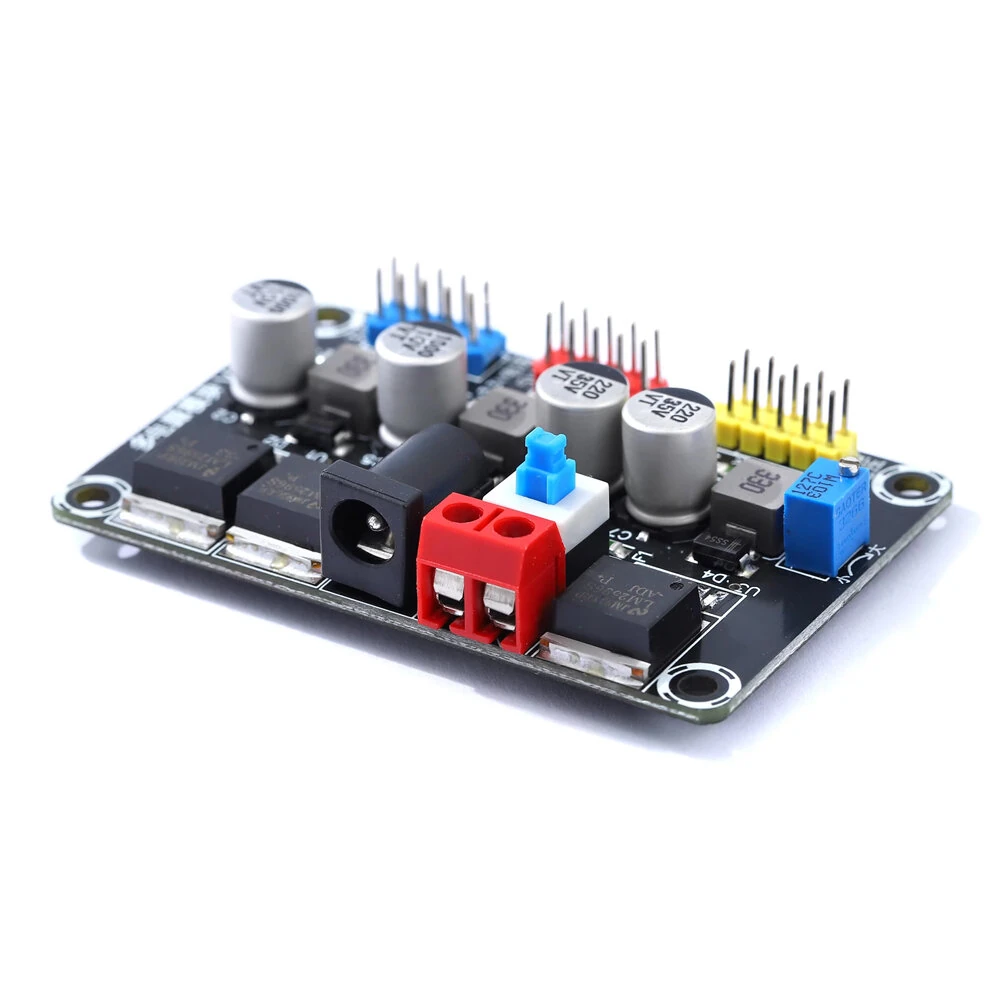

1.Good performance, use brand new LM2596 voltage regulator chip (LM2596-3.3V, LM2596-5V, LM2596-ADJ).
2. High quality materials, new aluminium capacitors, new power inductors.
3. High safety performance, four self-recovery fuses to ensure the safety of use.
4. With power supply indicator, there are three power supply indicator, indicator lights out that the load has a short circuit immediately unplug the power supply.
5. Wide range of application, suitable for intelligent car racing, electronic competitions, robotics competitions, laboratory experiments and other power supply.

Specification:
Product colour: black
Main chip: LM2596-3.3V, LM2596-5V, LM2596-ADJ
Input: DC7V~25V,> 1A
Output voltage: DC3.3V, DC5V, DC1.25V-Vin
DC power input interface type: DC 5.5mm*2.1mm
Product size: (L*W*H) 68*44* 12mm
Pin material: gold-plated pin, anti-oxidation
Use object: power supply module designed for intelligent car race, electronic competition, graduation design, laboratory experiments and other power supply.

Output voltage description:
DC3.3V: self-recovery fuse 2A, with power supply indicator, can be used for S08 series, S12 series, Kinetis- M4 K60/10 series, DSC series, Coldfire series, etc. 3.3V microcontroller and core board power supply.
DC5V: 2A self-resetting fuse, with power indicator, can be used to power S12 series, MPC series microcontroller and core board.
DC1.25V-Vin: self-resetting fuse 2A, with power supply indicator, adjustable output voltage, can be used for servo power supply.
Remarks: Users can replace more suitable self-recovery fuses and electrolytic capacitors according to the chip parameters to better meet the demand.
