M5Stack M5stampS3A based ESP32-S3FN8 embedded Module Programmable Development Board — image 1
Hover to zoom

M5Stack M5stampS3A based ESP32-S3FN8 embedded Module Programmable Development Board

37+ bought in past month
AI Summary
product for everyday users

The M5Stack M5stampS3A based ESP32-S3FN8 embedded Module Programmable Development Board is a mid-range product designed for everyday users. It features SoC: ESP32-S3FN8 and DC-DC: MUN3CAD01-SC.

₹1,807-16%
MRP:₹2,161Save ₹354
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

16% Off — you save ₹354 on this product!

Total: ₹1,807
Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.
Estimated delivery: 25 Aug – 8 Sept
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Quick Specs

SoC: ESP32-S3FN8
DC-DC: MUN3CAD01-SC
Flash: 8 MB
Input Voltage: DC 5 V
HMI: Programmable physical button × 1, programmable RGB LED (WS2812B-2020) × 1
Antenna Type: 2.4 GHz 3D antenna

Ideal For

Everyday convenience
Share:
SKU: bg-2045598

About This Product

The M5Stack M5stampS3A based ESP32-S3FN8 embedded Module Programmable Development Board is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.

Key Specifications

  • SoC: ESP32-S3FN8
  • DC-DC: MUN3CAD01-SC
  • Flash: 8 MB
  • Input Voltage: DC 5 V — works with standard household power
  • HMI: Programmable physical button × 1, programmable RGB LED (WS2812B-2020) × 1
  • Antenna Type: 2.4 GHz 3D antenna — smooth, flicker-free operation
  • Module Resource I/F: Touch Sensor, SD/SDIO/MMC Host Ctrl, SPI, SDIO/SPI Slave Ctrl, EMAC, Motor PWM, LED PWM, UART, I²C, I²S, GPIO, Pulse Counter
  • IO Interfaces × 23: G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/ — compatible with modern devices

Why Buy from Elecvora?

Elecvora sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Description: Stamp-S3A is a highly-integrated embedded module based on the Espressif ESP32-S3FN8. It is equipped with a 240 MHz Xtensa® 32-bit LX7 dual-core processor, integrates 8 MB Flash, a programmable RGB LED, and a user button. The deeply-optimized 3D antenna design offers stronger wireless communication performance. Twenty-three GPIOs are broken out and provided via 1.27 mm / 2.54 mm pitch SMT/DIP pin headers or sockets, allowing effortless PCB integration and enabling developers to build applications rapidly.

Features: ESP32-S3FN8 (2.4 GHz Wi-Fi) Minimum-system board Rich I/Obreakout supporting multiple application forms (SMT,DIP,1fly-wire,Unit) Integrated programmable RGB LED and button Development Platform: UiFlow2 ArduinoIDE ESP-IDF PlatformIO

Specifications:

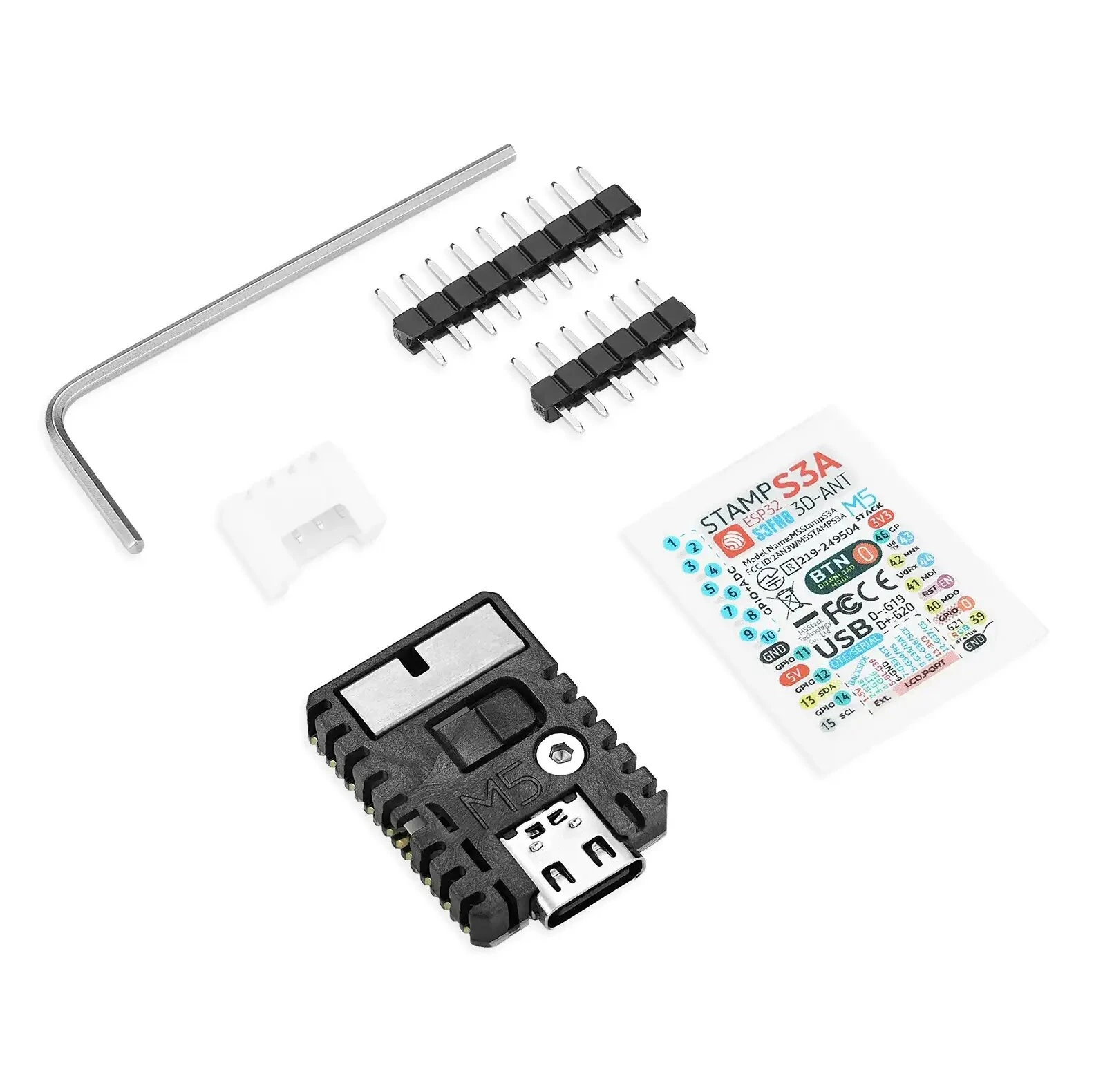

Package Includes: 1 x Stamp-S3A 1 x HY2.0-4P Terminal 1 x 2.54-9 P Male Header 1 x 2.54-6 P Male Header 1 x Hex Key L-Shape 1.5 mm (For M2 Screw) 1 x Pin Sticker

Product Comparison:



Product Safety Information
Product Safety Information
Manufacturer
Shenzhen Yuner Yipu Trading Co., Ltd
Address
East 1087, Building 4, SEG Science and Technology Park, No. 3012 Huaqiang North Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong, CN
European agent
VISHTEC ltd
Email
compliance@vish-tec.com
Address
3 rd floor office 5, Plovdiv 2 Liuben Karavelov bul, 4002 Bulgaria
UK agent
CET Product Service Ltd.
Email
info@cetproduct.com
Address
Beacon House Stokenchurch Business Park, Ibstone Rd, Stokenchurch, High Wycombe, Buckinghamshire, UK

Setup Guide

1
Identify the pins
Locate VCC (power), GND (ground), and data pins (SDA/SCL for I2C, MOSI/MISO for SPI, or TX/RX for UART). Refer to the pinout diagram on the product page.
2
Wire to your microcontroller
Connect VCC to 3.3V or 5V (check the module spec), GND to GND, and data pins to the appropriate GPIO pins on your Arduino or Raspberry Pi.
3
Install libraries
In Arduino IDE, go to Sketch → Include Library → Manage Libraries and search for the sensor library. Install the recommended version.
4
Upload example sketch
Open File → Examples → [library name] → Basic Example. Upload to your board and open Serial Monitor to view output.
5
Calibrate if needed
Some sensors (temperature, humidity, distance) may need a short warm-up period or calibration. Run the calibration sketch if provided.
