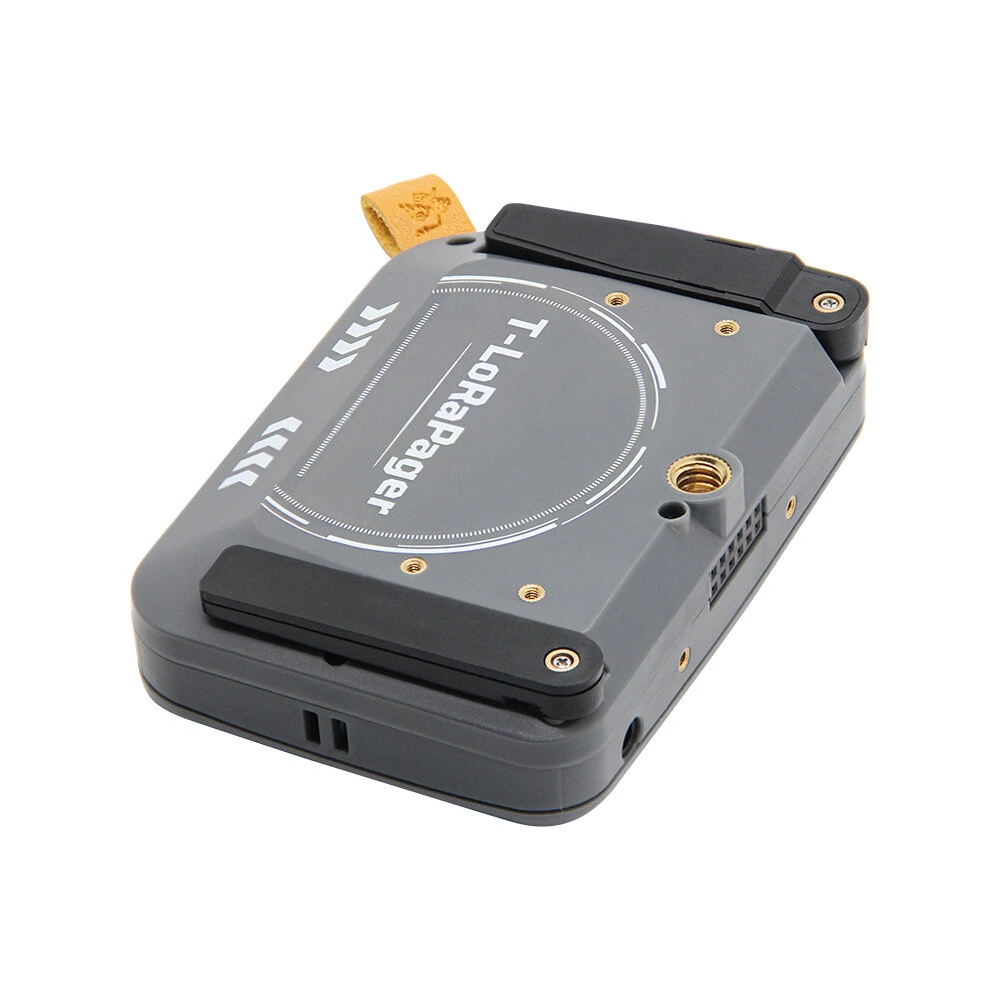

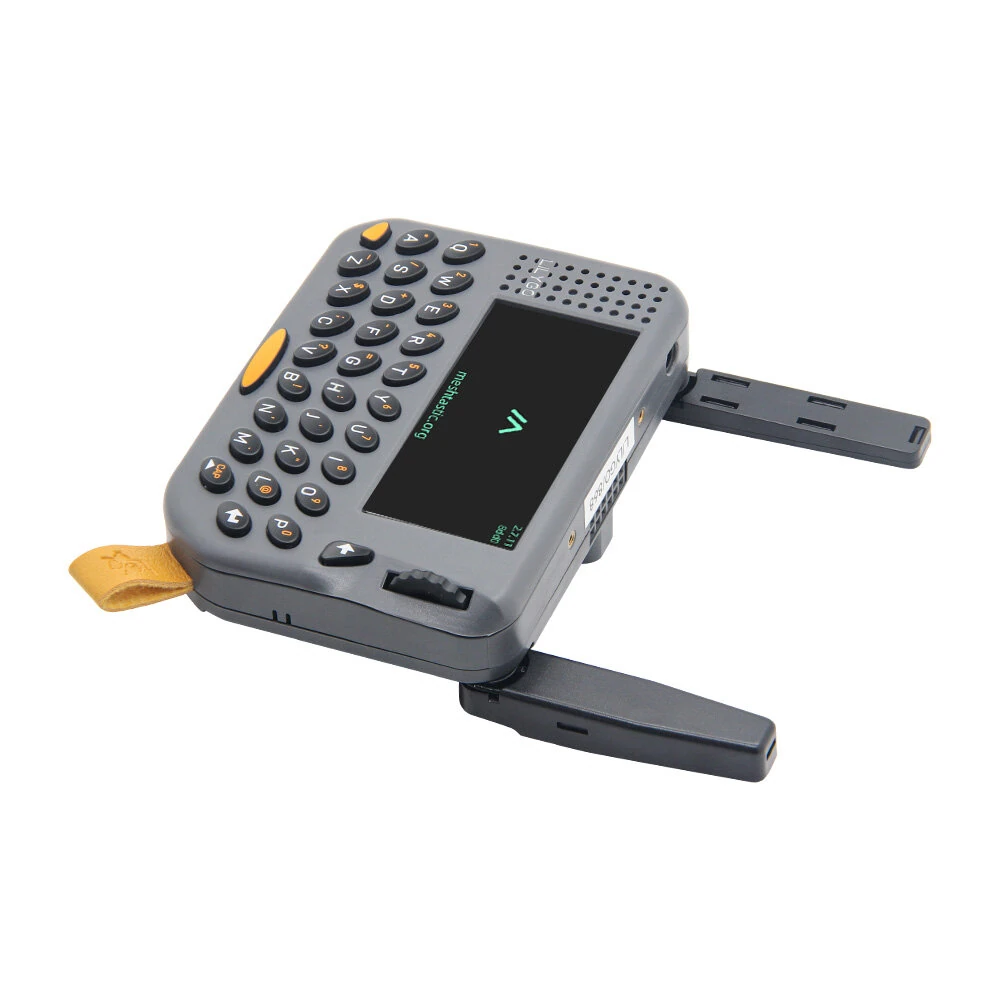

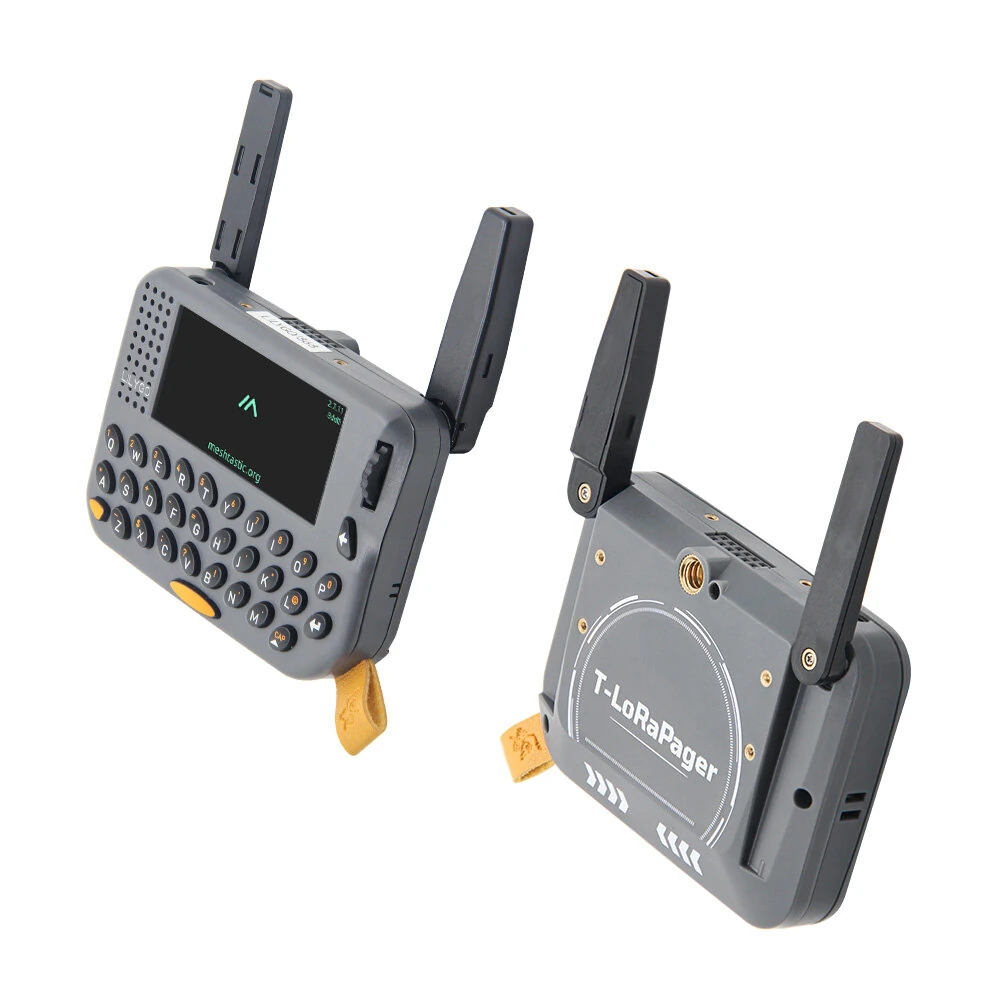

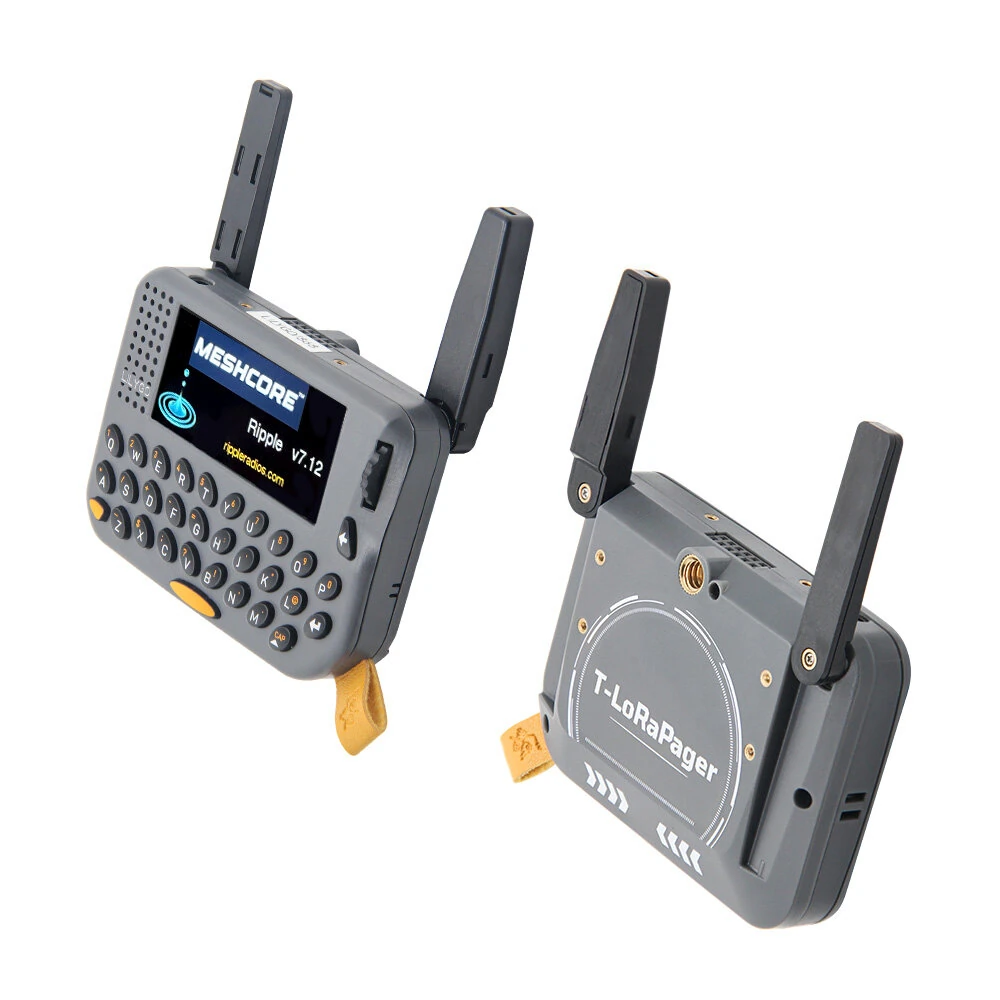

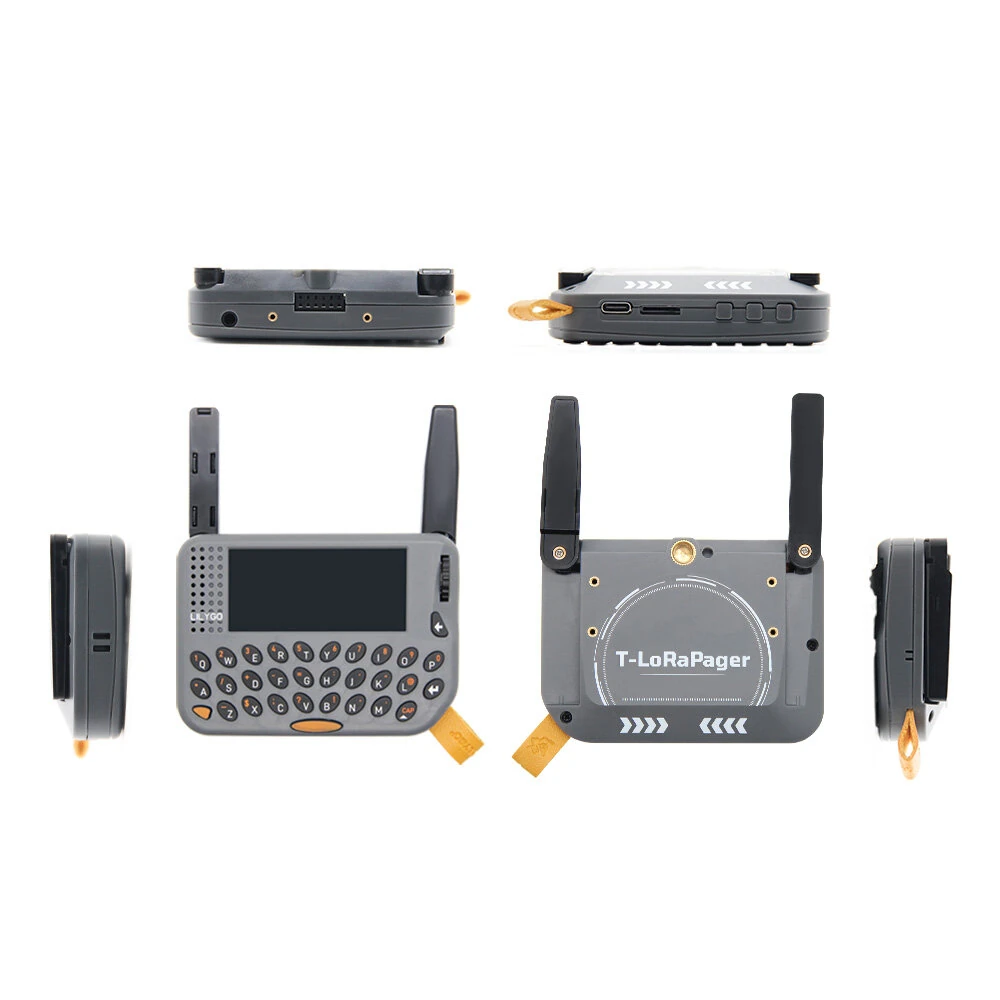

LILYGO T-Lora Pager Meshtastic/Meshcore Programmable Handheld IoT LoRa ESP32-S3 Wireless Development Board Kit with LoRa/GPS/NFC/RTC

Name: LILYGO T-Lora Pager Meshtastic/Meshcore Programmable Handheld IoT LoRa ESP32-S3 Wireless Development Board Kit with LoRa/GPS/NFC/RTC
Brand: LILYGO
SKU: 2051219
Price: 11534 INR
Availability: InStock

29+ bought in past month

AI Summary

Motherboard & Development Board for premium buyers

The LILYGO T-Lora Pager Meshtastic/Meshcore Programmable Handheld IoT LoRa ESP32-S3 Wireless Development Board Kit with LoRa/GPS/NFC/RTC by LILYGO is a premium motherboard & development board designed for premium buyers.

✓ wireless convenience

₹11,534-28%

MRP:₹15,979Save ₹4,445

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

28% Off — you save ₹4,445 on this product!

Type: Meshcore

frequency: 915MHZ

Price: ₹11,534

Quantity

Total: ₹11,534

Buying tip: A top-tier option — the best features and quality available in this category.

Estimated delivery: 24 Aug – 7 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience

SKU: bg-2051219Category: Motherboard & Development Board

About This Product

The LILYGO T-Lora Pager Meshtastic/Meshcore Programmable Handheld IoT LoRa ESP32-S3 Wireless Development Board Kit with LoRa/GPS/NFC/RTC by LILYGO is a premium motherboard & development board designed for premium buyers. It delivers reliable performance at an accessible price.

Why Buy from Elecvora?

Elecvora sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:

T-LoRa Pager LR1121

MCU: ESP32-S3

Flash: 16MB

PSRAM: 8MB

Development Platform: for Arduino-IDE, VS Code, ESP-IDF

Onboard Functions: RTC, battery charging, battery level indicator, keyboard, GPIO expansion, audio power amplifier, TF card slot

LoRa Chip: LR1121

Frequency Band: sub-GHz and 2.4GHz

Display: 2.3-inch IPS LCD

Display Driver Chip: ST7796

Resolution: 480 x 222

NFC Module: ST25R3916

GNSS: Supports GPS and BeiDou positioning

AI Sensor Chip: BHI260AP

Audio Codec: RC01812

Audio: 24-bit, 8 kHz to 96 kHz

Size: 106 x 89 x 23mm

USB Charging: 5V, 500mA

T-LoRa Pager

MCU: ESP32-S3

Flash: 16MB

PSRAM: 8MB

Development Environment: for Arduino-IDE, VS Code, ESP-IDF

Onboard Functions: RTC clock, battery charging, battery level meter, external GPIO expansion, audio power amplifier, TF card, keyboard

LoRa Chip: SX1262

LoRa Frequency: 433, 868, 915, 920MHz

Display: 2.3 inch IPS LCD

Display Driver Chip: ST7796

Resolution: 480 x 222

NFC Module: ST25R3916

GNSS Positioning System: Supports 4 positioning systems running at the same time, including GPS and BeiDou

AI Smart Sensor Model: BHI260AP

IMU: Self-learning AI + 6-axis IMU

Audio Codec Module: ES8311

Audio: 24-bit, 8 kHz to 96 kHz

Size: 106 x 89 x 23mm

USB Charging Voltage and Current: 5V, 500mA

Package included:

1 x LILYGO Meshtastic T-LoRa Pager

Product Safety Information

Setup Guide

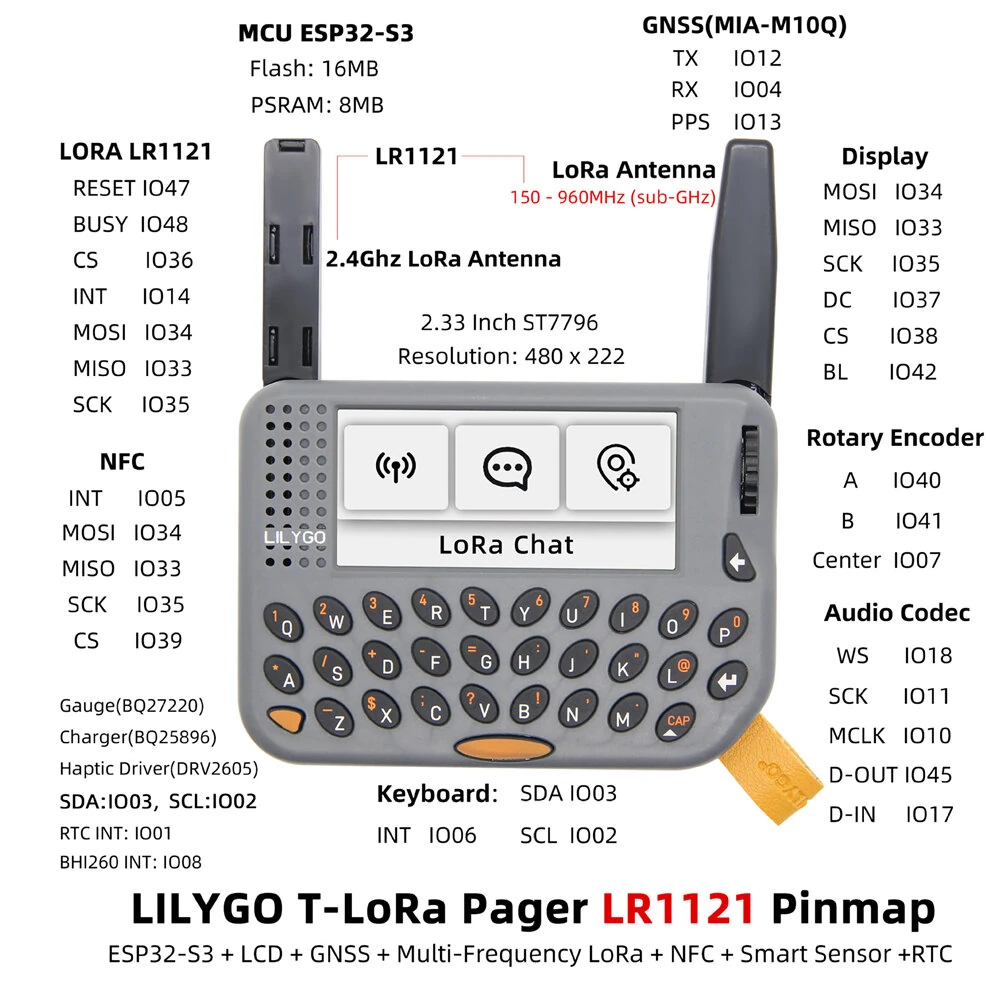

Identify the pins

Locate VCC (power), GND (ground), and data pins (SDA/SCL for I2C, MOSI/MISO for SPI, or TX/RX for UART). Refer to the pinout diagram on the product page.

Wire to your microcontroller

Connect VCC to 3.3V or 5V (check the module spec), GND to GND, and data pins to the appropriate GPIO pins on your Arduino or Raspberry Pi.

Install libraries

In Arduino IDE, go to Sketch → Include Library → Manage Libraries and search for the sensor library. Install the recommended version.

Upload example sketch

Open File → Examples → [library name] → Basic Example. Upload to your board and open Serial Monitor to view output.

Calibrate if needed

Some sensors (temperature, humidity, distance) may need a short warm-up period or calibration. Run the calibration sketch if provided.
